Interlock For Building Entry

1 Door is locked and the other door is unlocked.

  • Placeholder
  • Placeholder

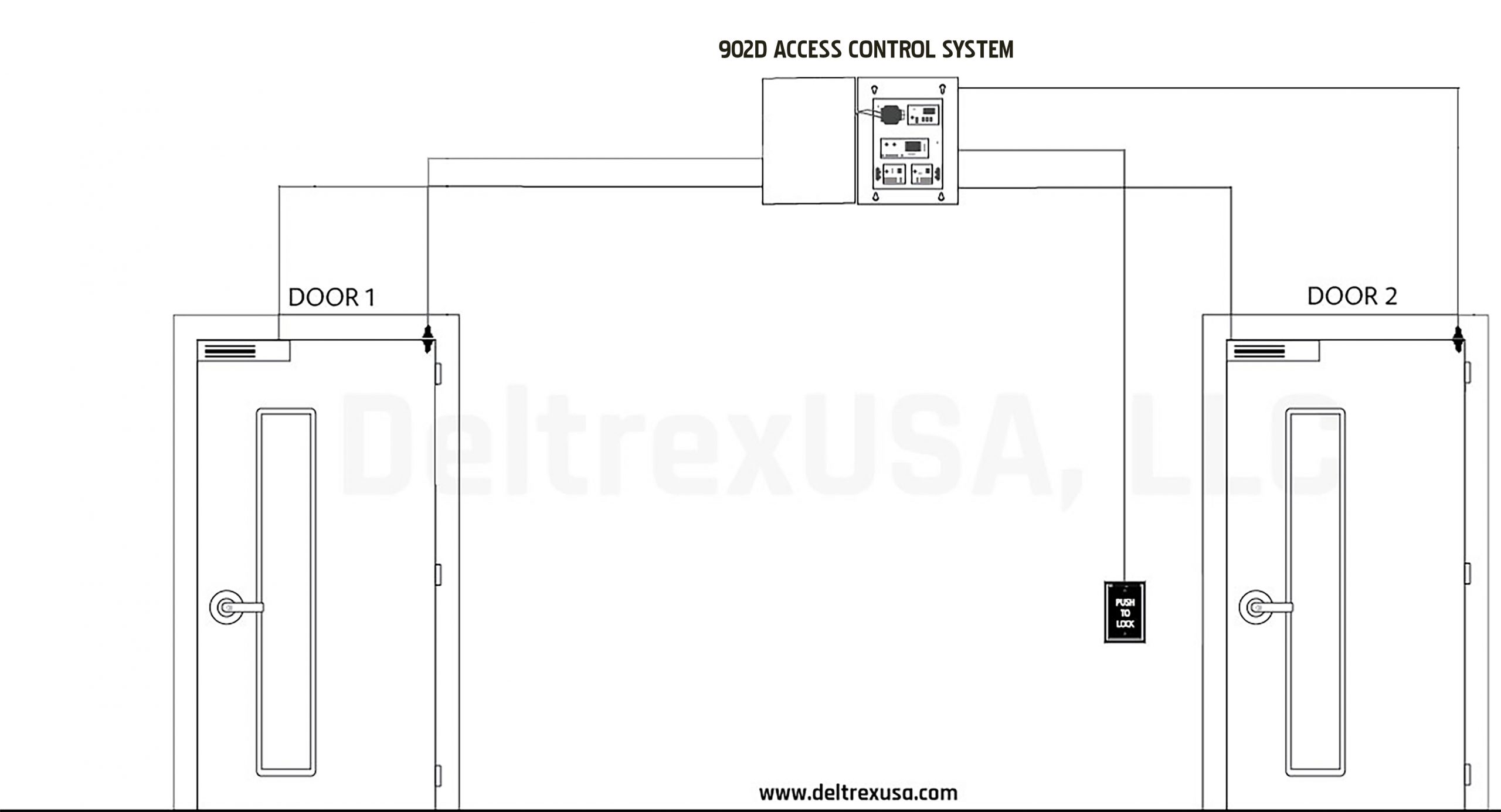

  • 902d-graphic

Door One goes from the street to a vestibule, also called foyer, entrace hall, or lobby. Many NYC apartment buildings have this room, Door One is normally unlocked. Residents can enter the space, and so can the mail man to access the mailboxes. Once inside the vestibule, a resident presents a keycard or number code to open Door Two, which leads into the actual building.

While any one door is open, any other door is locked in order to avoid free flow, like in other mantrap scenarios. Also, there is a push-to-lock button inside the vestibule. When pressed, both doors would be locked. This allows a resident to enter the building through Door One and press the button to avoid anyone else following them into the vestibule. Only when they go through Door Two and that closes again, the system resets.

The following items are needed for the 902D- System:

  • pp6 power supply

    902D

    Access Control and Power Supply

    1 each

  • pp6 power supply

    F130

    Intermediate level non-illuminated square or rectangular push button, mounted on a aluminum plate.

    1 each

  • f106 push plate control

    F106-E08

    Push Plate Door Control Switch

    2 each

  • F241

    Mortise Cylinder Key Switch

    1 each

  • door contact part

    170

    Mini Strobe Siren

    2 each

  • door contact part

    185-12

    Door Positioning Switch

    2 each


  • 810

    Magnetic Lock

    2 each

    OR

    600

    Electric Strike

    2 each

NOTE: In order to get an accurate price for our system, please take in account for all doors needed for your project and the products featured on this page. Questions?
